Key Takeaways

  • Modern space telescopes depend on 6-DOF positioning systems not simply for alignment, but for maintaining optical performance throughout launch, deployment, thermal cycling, and long-term operation.
  • These systems serve as critical error-budget management tools, compensating for residual misalignments, structural drift, thermal distortion, and pointing instability.
  • Technologies such as hexapods, fine steering mirrors, and segmented mirror actuators enable active correction of wavefront and line-of-sight errors that cannot be eliminated through passive design alone.
  • As future telescopes grow larger and more complex, 6-DOF control will become increasingly essential for achieving and sustaining diffraction-limited performance in space.

6-DOF Positioning Systems in Space Telescopes

Modern space telescopes are no longer limited by optical design alone. As aperture size increases and wavefront requirements become more stringent, the dominant challenge shifts from designing an ideal optical system to maintaining that system under launch loads, deployment uncertainty, cryogenic cooldown, thermal cycling, structural drift, and long-term orbital operation.

In this context, six-degree-of-freedom positioning systems are not merely alignment mechanisms. They are part of the telescope’s error-budget management architecture. By controlling translations and rotations of optical components, 6-DOF systems provide the final corrective layer between theoretical optical performance and actual in-orbit wavefront stability.

For space telescopes, the question is therefore not simply whether a mirror or detector can be moved in six axes. The more important question is how much residual wavefront error, line-of-sight drift, focus shift, decenter, and tilt can be compensated after manufacturing, integration, launch, deployment, and thermal distortion.

1. 6-DOF Control as an Error-Budget Management Tool

In high-performance optical systems, every subsystem contributes to the final error budget. Mirror surface figure error, mechanical tolerance, bonding stress, launch-induced deformation, deployment repeatability, thermal expansion, actuator hysteresis, and sensor noise all accumulate into residual alignment error.

A 6-DOF positioning system provides a controlled way to reduce these residuals.

Rather than treating alignment as a one-time ground-integration activity, modern space telescope architectures increasingly treat alignment as an adjustable state. This is especially important for segmented mirrors, deployable structures, off-axis systems, cryogenic telescopes, and instruments requiring long exposure stability.

Typical error contributors include:

Error Source

Optical Consequence

6-DOF Compensation Role

Mirror decenter

Coma, image shift, pupil misalignment

X/Y correction

Axial displacement

Defocus, back focal length error

Z correction

Mirror tilt

LOS error, coma, astigmatism

Pitch/Yaw correction

Detector plane misalignment

Field-dependent focus error

Tip/tilt/Z correction

Thermal drift

Time-varying wavefront error

Closed-loop compensation

Deployment residual

Segment phasing/alignment error

Multi-axis correction

Structural creep

Long-term boresight drift

Periodic recalibration

Required performance should be specified according to the mission error budget, for example:

  • Translational resolution: 2 nm / 1 μm
  • Angular resolution: 0.05 μrad / 0.01 arcsec
  • Repeatability: 5 nm / 0.1 μm
  • Stability over temperature: 0.2 nm/°C or 0.01 μrad/°C
  • First resonance frequency: ≥80 Hz
  • Stroke range: ±5 mm / ±2 deg
  • Operational temperature range: 20 K to 300 K

2. Why Space Telescopes Require Active 6-DOF Alignment

For ground-based optical assemblies, alignment errors can often be corrected during integration and periodically serviced. Space telescopes do not have that luxury. Once launched, the telescope must survive a sequence of events that can change its optical state:
  1. Launch vibration and acoustic loading
  2. Release from launch constraints
  3. Deployment of mirrors, booms, baffles, or sunshields
  4. Cooldown to operating temperature
  5. Thermal cycling during orbital operation
  6. Long-term structural relaxation
  7. Reaction-wheel-induced jitter and spacecraft disturbance
The challenge is rarely achieving alignment once. The challenge is maintaining alignment after the telescope has moved through all of these mechanical and thermal states. This is where 6-DOF positioning becomes mission-critical. It enables the telescope to compensate for accumulated misalignments that cannot be fully eliminated by passive mechanical design alone.

3. From Kinematic Motion to Optical Consequence

For an optical engineer, the six degrees of freedom are less important as mechanical definitions than as optical error drivers. Translations and rotations map directly into wavefront and pointing errors:
  • X/Y decenter can introduce coma, pupil shift, field distortion, and detector registration error.
  • Z displacement primarily affects focus, back focal length, and wavefront curvature.
  • Pitch/Yaw errors produce line-of-sight deviation, coma, and field-dependent aberrations.
  • Roll error affects detector orientation, polarization reference frames, and image registration.
For example, a small mirror tilt of 0.1  μrad can generate an LOS deviation of approximately 0.1  μrad, depending on the optical configuration. At an orbital altitude of 1500  km, this corresponds to a ground-projected pointing error of approximately 0.15  m. This relationship is why 6-DOF tolerances cannot be evaluated only mechanically. They must be evaluated through optical sensitivity analysis.

4. 6-DOF Mechanisms Used in Space Telescope Architectures

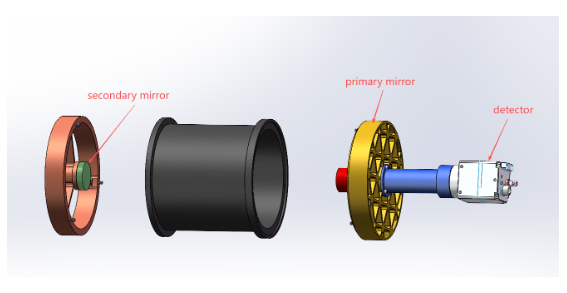

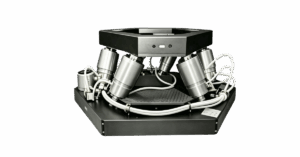

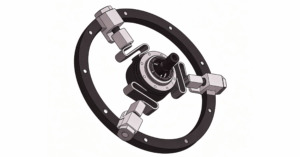

4.1 Hexapod Platforms

Hexapod mechanisms are widely used when full six-axis adjustment is required with high stiffness and deterministic kinematics. They are suitable for secondary mirror positioning, segment alignment, interferometric calibration, and optical bench adjustment.

Their main advantages are:

  • Full 6-axis positioning
  • High stiffness-to-mass ratio
  • Compact mechanical architecture
  • Good repeatability
  • Compatibility with closed-loop sensing

Key specification placeholders:

  • Translational stroke: ±4 mm
  • Rotational stroke: ±1.5 deg
  • Translational resolution: 1 nm
  • Angular resolution: 0.02 μrad / 0.004 arcsec
  • Repeatability: 3 nm / 0.05μm
  • Axial stiffness: 1200 N/mm
  • Lateral stiffness: 750 N/mm
  • First natural frequency: 95 Hz
  • Operating temperature: 15 K to 320 K

The critical design issue is not only positioning accuracy, but whether the platform can maintain alignment under thermal gradients, launch constraints, and structural load paths without introducing excessive parasitic motion.

4.2 Fine Steering Mirrors

Fine steering mirrors address a different part of the error budget. They are not usually intended for large-stroke alignment, but for high-bandwidth pointing stabilization and jitter suppression. They are especially relevant when residual spacecraft disturbance would otherwise degrade image quality during long exposures. Typical disturbance sources include:
  • Reaction wheel jitter
  • Cryocooler vibration
  • Solar pressure variation
  • Structural micro-vibration
  • Attitude-control residual error
Key specification placeholders:
  • Angular range: ±250 μrad / ±0.25 mrad
  • Angular resolution: 2 nrad / 0.002 μrad
  • Bandwidth: ≥1200 Hz
  • Settling time: <0.8 ms
  • Mirror diameter: 60 mm
  • Wavefront distortion contribution: <5 nm RMS
  • Pointing stability contribution: 0.001 arcsec /1 mas
For space telescopes, FSM performance should be evaluated not only by actuator bandwidth, but also by its contribution to residual line-of-sight stability and wavefront error.

4.3 Segmented Mirror Actuation

Large deployable telescopes introduce another layer of 6-DOF complexity. Each mirror segment may require piston, tip, tilt, and sometimes additional degrees of correction to achieve phasing and global wavefront control. In this case, 6-DOF control is no longer a single mechanism problem. It becomes a distributed optical control problem involving:
  • Segment positioning
  • Segment phasing
  • Wavefront sensing
  • Structural model updating
  • Thermal distortion compensation
  • Closed-loop optical correction
Specification placeholders:
  • Segment piston range: ±50 μm /0.05 mm
  • Segment tip/tilt range: ±300 μrad
  • Phasing accuracy: <12 nm RMS
  • Wavefront sensing accuracy: <8 nm RMS
  • Segment-to-segment stability: <15 nm over 24 hours
  • Thermal drift allowance: 22 nm over ΔT = 10 K

5. Closed-Loop Control: Sensor, Actuator, Optical Feedback

A space-qualified 6-DOF system is only as good as its metrology and control loop. The control architecture typically combines:
  • Position sensors for local mechanism feedback
  • Wavefront sensing for optical-state feedback
  • Star trackers or guide sensors for pointing reference
  • Thermal sensors for model-based compensation
  • Actuators such as piezo stages, voice coils, flexure mechanisms, or motorized struts
The most important distinction is between mechanical closed-loop control and optical closed-loop control. A mechanism can return to its commanded position with excellent repeatability, but the optical system may still experience wavefront drift due to thermal gradients, structural deformation, or mirror figure change. For high-end space optics, the control loop must ultimately close around optical performance, not only encoder position.

6. Thermal Stability: The Hidden Driver of 6-DOF Design

Thermal behavior is often the dominant long-term alignment challenge. A telescope may be perfectly aligned at room temperature during ground integration, then experience significant alignment change during cooldown or orbital thermal cycling. This is especially critical for cryogenic infrared telescopes, where structural contraction and material CTE mismatch can shift optical components across multiple degrees of freedom. Important thermal design factors include:
  • CTE matching between mirror, mount, and actuator
  • Thermal gradients across the optical bench
  • Actuator performance at low temperature
  • Lubrication or friction behavior under vacuum
  • Sensor drift over temperature
  • Thermal hysteresis after repeated cycles
Specification placeholders:
  • Operating temperature: 38 K
  • Survival temperature: 12 K to 340 K
  • Allowable thermal drift: 0.3 nm/K or 0.015 μrad/K
  • Alignment stability after thermal cycle: <0.08 μm / 0.003 arcsec
  • Number of qualification cycles: : ≥120 cycles
  • Residual wavefront error after cooldown: <18 nm RMS
For this reason, 6-DOF mechanisms for space telescopes should be evaluated as thermo-opto-mechanical subsystems, not as standalone motion stages.

7. JWST as a Representative Case

The James Webb Space Telescope illustrates why 6-DOF control is essential in modern space optics.

JWST was launched in a folded configuration, deployed in space, cooled to cryogenic temperature, and then aligned to achieve high optical performance. This process required compensation for deployment residuals, thermal contraction, segment position errors, and wavefront phasing errors.

The key lesson is not simply that JWST used precision actuators. The key lesson is that large deployable telescopes require active alignment architectures from the beginning of the design process.

Without multi-axis adjustment capability, the telescope would need to rely entirely on passive deployment accuracy and structural stability, which is unrealistic for large-aperture space systems.

8. Design Implications for Future Space Telescopes

Future space telescopes are likely to push 6-DOF requirements even further. Larger apertures, deployable segmented mirrors, formation-flying interferometers, high-contrast imaging, and exoplanet observation all require tighter control of alignment and wavefront stability. This creates several design implications:
  1. 6-DOF mechanisms must be included early in the optical tolerance analysis.
  2. Motion specifications should be derived from wavefront and LOS budgets, not selected independently.
  3. Thermal drift must be treated as a first-order design driver.
  4. Ground calibration must account for launch, deployment, and cooldown states.
  5. Closed-loop optical feedback will become increasingly important.
  6. Mechanism stiffness and dynamic behavior must be evaluated together with spacecraft disturbance spectra.
In other words, 6-DOF positioning is evolving from an auxiliary alignment function into a core enabling technology for next-generation space telescopes.

The Future of 6-DOF Positioning Systems for Active Optics and Wavefront Stability

For modern space telescopes, 6-DOF control is not simply a mechanical convenience. It is a bridge between optical design intent and in-orbit optical performance.

By compensating for manufacturing tolerances, integration residuals, deployment uncertainty, thermal deformation, structural drift, and pointing disturbance, 6-DOF positioning systems directly support wavefront stability, line-of-sight accuracy, and long-term observation reliability.

As future missions demand larger apertures, lighter structures, and tighter wavefront budgets, 6-DOF mechanisms will become increasingly central to the design, manufacturing, calibration, and operation of space telescopes.
