Space Optical Payloads for Small Satellites and Space Missions
Avantier supports the development of compact optical payloads for small satellites and space missions.
Spaceborne optical systems must meet demanding requirements for imaging performance, size, weight, thermal stability, structural integrity, and manufacturability. We help satellite manufacturers and system integrators turn mission requirements into practical optical payload solutions that can be built, tested, and deployed.
What Avantier Supports
We provide engineering support for:
- Optical system design
- Telescope architecture trade studies
- Thermal and thermo-optical analysis
- Mechanical and structural design
- Tolerance analysis
- Stray light analysis
- Prototype and engineering model development
- Manufacturing and alignment support
Supported optical architectures include:
- Ritchey–Chrétien telescopes
- Classical Cassegrain systems
- Refractive optical systems
- Off-axis reflective telescopes
- SiC-based reflective telescope systems
Related Optical Payload Products
- RC Telescope
Compact Ritchey–Chrétien telescope systems for spaceborne imaging payloads - Off-Axis Parabolic Mirror
Off-axis reflective mirror solutions for compact optical systems and beam control - Silicon Carbide Mirror

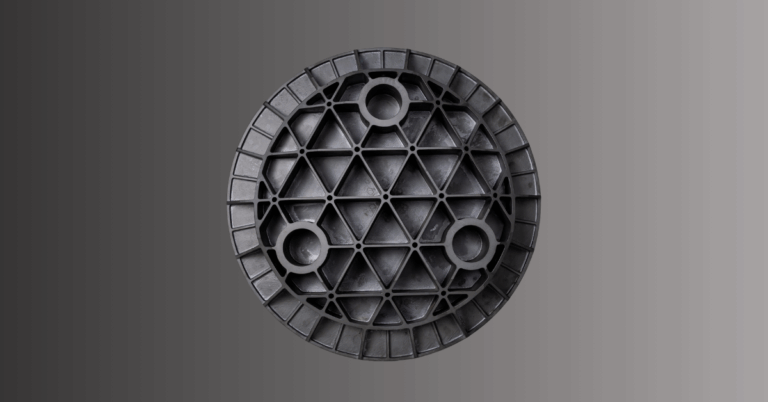

Lightweight SiC mirror solutions for high-stability space optical payloads
Integrated Engineering Considerations
Space optical payload development requires a balance between optical performance and practical engineering constraints.
Key design considerations include:
- Imaging performance within limited payload volume
- Mass and stiffness optimization for small satellite platforms
- Focus stability across operational temperature ranges
- Optical alignment under launch vibration and mechanical loads
- Material selection for thermal and structural stability
- Manufacturability, assembly, alignment, and test feasibility
Rather than optimizing each discipline independently, optical, mechanical, thermal, and manufacturing factors are evaluated together to improve overall payload feasibility.
Mechanical and Structural Design
Mechanical design plays a critical role in maintaining optical performance from launch through on-orbit operation.
Typical engineering activities include:
- Lightweight payload structure design
- Optical bench and telescope structure design
- Mirror, lens, and detector mount design
- Structural stiffness optimization
- Finite element analysis
- Vibration and shock assessment
- Manufacturing-ready mechanical design
Material and structural approaches may include aluminum, titanium, Invar, CFRP, or SiC-based configurations depending on mass, stiffness, thermal stability, and manufacturing requirements.
Thermo-Optical Engineering
Thermal behavior directly affects focus stability, optical alignment, and image quality.
Thermo-optical engineering activities include:
- Thermal expansion and material matching
- Temperature gradient assessment
- Focus shift evaluation
- Passive athermalization studies
- Thermal-structural-optical performance coupling
- Operational temperature range assessment
These evaluations help maintain optical performance across expected mission environments.
Looking for a different solution?
Tolerance and Manufacturability
A space optical payload must be designed not only for nominal performance, but also for realistic fabrication, assembly, alignment, and test conditions.
Typical activities include:
- Optical tolerance analysis
- Mechanical tolerance budgeting
- Alignment strategy development
- Assembly sequence planning
- Manufacturing drawing support
- Prototype and engineering model support
- Design-for-manufacturing review
This helps assess whether the design can be manufactured and aligned while maintaining required optical performance.
Typical Design Parameters
| Parameter | Typical Range |
| Aperture Range | Ø100 mm – Ø500 mm |
| Focal Length Range | 760 mm – 8840 mm |
| Spectral Coverage | 400 nm – 12000 nm |
| Payload Mass | 0.7 kg ~ 15+ kg |
| Supported Satellite Classes | 1U–6U CubeSat |
| Operating Temperature | -50 °C – +60 °C |
| Optical Architecture | RC, Cassegrain, Refractive, Off-axis reflective, SiC-based systems |
| Development Stage | Concept study, preliminary design, detailed design, prototype, manufacturing preparation |
Applications
Our optical payload engineering support is suitable for:
- Earth observation missions
- Space situational awareness
- Scientific and exploration missions
- Technology demonstration missions
- CubeSat, microsatellite, and small satellite platforms
Why Customers Work With Us
Our strength lies in transforming demanding mission requirements into manufacturable optical payload solutions.
Rather than treating optical, thermal, and mechanical disciplines independently, we integrate them throughout the development process to achieve:
- Compact and lightweight architectures
- Stable imaging performance
- Reduced development risk
- Improved manufacturability
- Efficient transition from design to hardware
From early concept studies through manufacturing support, we help customers develop optical payloads that meet challenging mission requirements while remaining practical to build, integrate, and deploy.
Talk to our Engineering Team
If you are planning a small satellite mission or developing a space optical payload, please contact us to discuss your requirements.
We can support feasibility studies, concept design, optical and mechanical engineering, thermo-optical evaluation, prototype development, and preparation for manufacturing.
